TransChill Automatic Transmission Cooler Kit
Designed specifically to reduce excessive transmission heat caused by towing, carrying loads and driving in sand, snow, off-road or hot conditions.
why do you need one?
Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.
Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.

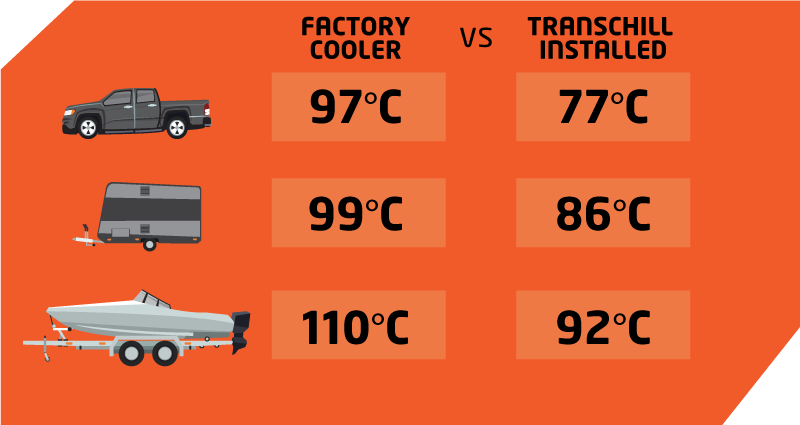

Direction-Plus™ transmission coolers can reduce the temperature of the ATF by as much as 33°C. A reduction of 11°C can double the life expectancy of the transmission, ATF and all internal components.
| Make | Model | Engine | From | To | transchill cooler kit | transchill dual cooler kit | notes |
|---|---|---|---|---|---|---|---|
| Ford | Ranger | P5AT | 2011 | 2021 | TC621DPK | TCD621DPK | |
| Ford | Everest | P5AT | 2015 | 2018 | TC621DPK | TCD621DPK | Cowling is required to be trimmed |
| Holden | Colorado 2.8L | LWH | 2012 | 2020 | TC602DPK | TCD602DPK | |
| Holden | Colorado 7 2.8L | LWH | 2012 | 2020 | TC602DPK | TCD602DPK | |
| Isuzu | D-Max | 4JJ1TCX | 2012 | 2019 | TC601DPK | ||
| Isuzu | D-Max | 4JJ3TCX | 2020 | 2021 | TC645DPK | ||
| Isuzu | MU-X | 4JJ1TC | 2013 | 2017 | TC601DPK | ||
| Isuzu | MU-X | 4JJ1TCX | 2013 | 2019 | TC601DPK | ||
| Mazda | BT-50 | P5AT | 2011 | 2019 | TC621DPK | TCD621DPK | TCD621DPK requires to drill a 6mm hole into the centre radiator support panel to facilitate mounting of the second bracket |
| Mitsubishi | Pajero Sport | 4N15 | 2015 | 2019 | TC629DPK | TCD629DPK | |
| Mitsubishi | Triton | 4N15 | 2015 | 2019 | TC629DPK | TCD629DPK | |
| Toyota | Hilux | 1KD-FTV | 2004 | 2006 | TC609DPK | ||
| Toyota | Hilux | 1KD-FTV | 2008 | 2015 | TC609DPK | ||
| Toyota | Hilux | 1GD-FTV | 2016 | 2018 | TC628DPK | ||
| Toyota | Hilux | 2GD-FTV | 2018 | 2021 | TC628DPK | ||
| Toyota | Hilux | 1GR | 2009 | 2015 | TC609DPK | ||
| Toyota | Landcruiser 200 series | 1VD-FTV | 2007 | 2021 | TCD615DPK | ||
| Toyota | Prado 150 series | 1KD-FTV | 2009 | 2015 | TC620DPK | ||
| Toyota | Prado 150 series | 1GD-FTV | 2015 | 2021 | TC620DPK | ||
| Toyota | Prado 155 series | 1GD-FTV | 2015 | 2021 | TC620DPK |
Automatic TransChill Contents:
- Vehicle specific mounting brackets
- Stainless steel fixing hardware
- ATF Hose (400psi J1019)
- 23 row oil cooler
*Contents may differ based on fitment application.
