Steinbauer Power Module

  • steinbauer power module

GET more power! get more torque!

One method often used to increase the performance of the new-generation common rail diesel engines is to increase fuel rail pressure by tricking the ECU with “fudged” signals from sensors. This can create abnormal stresses on fuel system components with consequent unreliability problems and the potential for major damage.

STEINBAUER Power modules don’t change rail pressure. The desired performance enhancement is achieved by changing injection duration, the same way the system was originally designed to operate. This also allows precise fuel control throughout the full rpm range of the engine.

UP TO 20% MORE POWER AND TORQUE*

Manufacturer and local testing has confirmed the STEINBAUER Power Module’s ability to achieve 20% more power and 20% more torque while still maintaining safe emission levels and exhaust temperatures.

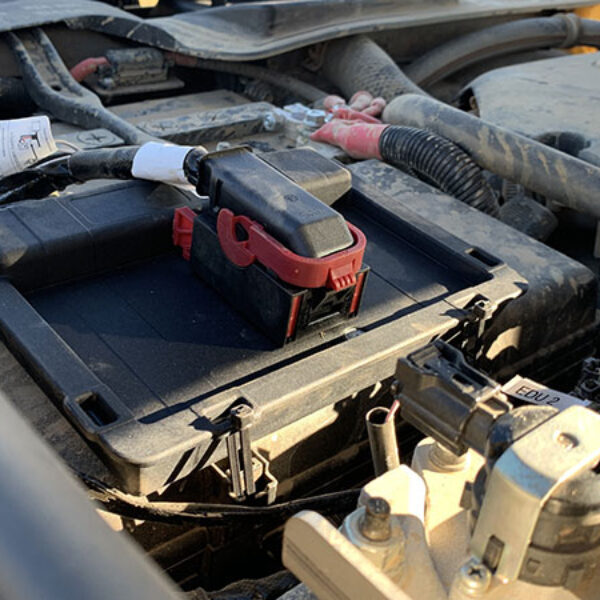

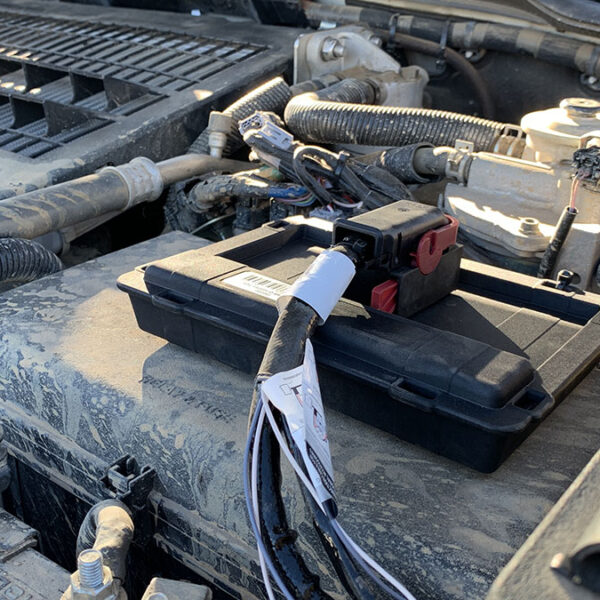

INSTALLATION

STEINBAUER Power Module is designed to be installed easily. Original electrical connectors are employed to allow easy installation.

Shop POWER MODULE

Features:

  • 3 years extended warranty
  • Easy installation with OE plugs
  • Precise fuel control
  • No change in common rail pressure
  • No interference with the original ECU
  • Less fuel consumption when towing*
  • Increased pulling power
  • Automotive industry standard gold contacts and sealed connectors
Response Plus Performance Chip

steinbauer power module

steinbauer power module comparison graph

BUILT IN SAFETY FEATURE

STEINBAUER Power Modules are programmed to sense when your 4WD is working hard for a prolonged period, like towing up a long hill, and trim themselves back by 1% per second, until they are running at 50% capacity after one minute. This greatly reduces the risk of rising EGTs cooking your engine.

Once your 4WD is running under less stress, the module kicks back into full capacity to give you maximum power, torque and economy. Traditional chips and tuning have no built in safety feature that can rival this!

Steinbauer Power MOdule outline

3 years warranty label

3 YEARS WARRANTY WITH ONLINE PRODUCT REGISTRATION

Steinbauer Power Module has a free 1 year warranty from the date of purchase. Register your product to get the Extended 3 years Warranty within 90 days of purchase. You can register your STEINBAUER Power Module at www.steinbauerwarranty.com

MakeModelengineYEARKW
standard		kw
after		nm
standard		nm
after		power moduleNOTES
FordEverestP5AT
(3.2L 5cyl)		2015 – 2020143172470564240048
FordEverest
(Bi-Turbo)		YNWS
(2.0L 4cyl)		2018 – 2021157188500600in prep
FordRangerWLAT
(2.2L 4 cyl)		2007 – 2011110132375450220559
FordRangerP4AT
(2.5L 4cyl)		2011 – 2020105126330396220162
FordRangerWEAT
(3.0L 4 cyl)		2007 – 2011115138380456220162
FordRangerP5AT
(3.2L 5cyl)		2015 – 2020147176470564240048
FordRanger
(Bi-Turbo)		YNWS
(2.0L 4cyl)		2018 – 2021157188500600in prep
FordRaptor
(Bi-Turbo)		YNWS
(2.0L 4cyl)		2018 – 2021157188500600in prep
FordTerritoryDURATORQ
(2.7L V6)		2011 – 2019140168440528220057
HoldenColoradoLWH
(2.8L 4cyl)		2012 – 2013132158470564220552
HoldenColorado
(Manual)		LWH
(2.8L 4cyl)		MY14 on (10/2013 on)147176470564220719
HoldenColorado
(Auto)		LWH
(2.8L 4cyl)		MY14 on (10/2013 on)147176500600220719
HoldenRodeo
(Manual)		4JJ1
(3.0L 4cyl)		2007 – 200896115280336220158
HoldenRodeo
(Auto)		4JJ1
(3.0L 4cyl)		2007- 200896115294353220158
HoldenRodeo
(Manual)		4JJ1
(3.0L 4cyl)		2008 – 2012120144360432220085
HoldenRodeo
(Auto)		4JJ1
(3.0L 4cyl)		2008 – 2012120144333400220085
IsuzuD-Max4JJ1
(3.0L 4cyl)		2008 – 2012120144333400220085
IsuzuD-Max4JJ1
(3.0L 4cyl)		06/12 to 08/2020130156430516220571
IsuzuD-Max4JJ3
(3.0L 4cyl)		09/2020 onward140168450540in prep
IsuzuMU-X4JJ1
(3.0L 4cyl)		2012 – 2021130156430516220571
MazdaBT-50P4AT
(2.5L 4cyl)		2011 – 2020105126330396220162
MazdaBT-50WEAT
(3.0L 4cyl)		2007 – 2011115138380456220162
MazdaBT-50P5AT
(3.2L 5cyl)		2015 – 2020147176470564240048
MazdaBT-504JJ3
(3.0L 4cyl)		2021140168450540in prep
MitsubishiChallenger (Manual)4D56
(2.5L 4cyl)		2011 – 2013131157400480220148
MitsubishiChallenger
(Auto)		4D56
(2.5L 4cyl)		2011 – 2013131157350420220148
MitsubishiPajero D-ID
(Manual)		4M41
(3.2L 4cyl)		2008 – 2017118142381457220148
MitsubishiPajero D-ID
(Auto)		4M41
(3.2L 4cyl)		2008 – 2017125150357428220148
MitsubishiPajero Sport
(Auto)		4N15
(2.4L 4cyl)		2015 – 2019133160430516220148
MitsubishiTriton MQ / MR4N15
(2.4L 4cyl)		2015 – 2021133160430516220148
MitsubishiTriton4D56
(2.5L 4cyl)		2008 – 2015100120314377220148
MitsubishiTriton D-ID4M41
(3.2L 4cyl)		2006 – 2008118142347416220148
MitsubishiTriton4D56
(2.5L 4cyl)		2008 – 2015130156400480230122with aftermarket exhaust
NissanNavara D22YD25
(2.5L 4cyl)		2002 – 200998118304365220102
NissanNavara D40YD25
(2.5L 4cyl)		2005 – 2015128154403484220102
NissanNavara D22ZD30
(3.0L 4cyl)		2007 – 2018110132314377220159
NissanNavara D40YD25
(2.5L 4cyl)		2010-2015140168450540220413Spanish only
NissanNavara D-40 V6V9X
(3.0L 6cyl)		2011 – 2015170204550660220318
NissanNavara NP300 (Single Turbo)YD23
(2.3L 4cyl)		2015 – 2019120144403484220775
NissanNavara NP300 (Twin Turbo)YD23
(2.3L 4cyl)		2019 – 2021140168450540220775
NissanPatrolZD30
(3.0L 4cyl)		2006 – 2007118142380456220159
NissanPatrol
(Manual)		ZD30
(3.0L 4cyl)		2007 – 2018118142380456220225
NissanPatrol
(Auto)		ZD30
(3.0L 4cyl)		2007 – 2018118142354425220225
ToyotaFortuner D-4D
(Manual)		1GD-FTV
(2.8L 4cyl)		09/15 to 08/2020130156420504230048
ToyotaFortuner D-4D
(Auto)		1GD-FTV
(2.8L 4cyl)		09/15 to 08/2020130156450540230048
ToyotaFortuner D-4D
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2020 to current150180500600230203
ToyotaHilux D-4D1KD-FTV
(3.0L 4cyl)		2004 – 2015120144343412220101with standard exhaust
ToyotaHilux D-4D1KD-FTV
(3.0L 4cyl)		2004 – 2015126151343412230040with bigger exhaust
ToyotaHilux D-4D
(Manual)		1GD-FTV
(2.8L 4cyl)		09/2015 to 08/2020130156420504230048
ToyotaHilux D-4D
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2015 to 08/2020130156450540230048
ToyotaHilux D-4D
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2015 to 08/2020130156450540230048
ToyotaHilux D-4D
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2020 to current150180500600230203
ToyotaHilux
(Manual)		1GD-FTV
(2.4L 4cyl)		09/2015 to 08/2020 on110132343412230048
ToyotaHilux
(Manual)		1GD-FTV
(2.4L 4cyl)		09/2020 to current110132400480in prep
ToyotaHilux1KZ-TE
(3.0L 4cyl)		2003 – 200785102315378220065
ToyotaPrado 120 series1KZ-TE
(3.0L 4cyl)		2003 – 200796115343412220064
ToyotaPrado 150 series
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2020 to current150180500600230203
ToyotaPrado 150 series1KD-FTV
(3.0L 4cyl)		2004 – 2015127152410492220101with standard exhaust
ToyotaPrado 155 series
(Manual)		1GD-FTV
(2.8L 4cyl)		09/15 to 08/2020130156420504230048
ToyotaPrado 155 series
(Auto)		1GD-FTV
(2.8L 4cyl)		09/15 to 08/2020130156450540230048
ToyotaPrado 155 series
(Auto)		1GD-FTV
(2.8L 4cyl)		09/2020 to current150180500600230203
ToyotaLand Cruiser
70 series V8		1VD-FTV
(4.5L 8cyl)		2007 – 2016151181430516220300
ToyotaLand Cruiser
70 series V8		1VD-FTV
(4.5L 8cyl)		11/16 to current151181430516240079with DPF
ToyotaLand Cruiser
200 series V8		1VD-FTV
(4.5L 8cyl)		2007 – 2015195234650780220338
ToyotaLand Cruiser
200 series V8		1VD-FTV
(4.5L 8cyl)		09/15 to current200240650780240200with DPF
VolkswagenAmarokCDBA
(2.0L 4cyl)		2012 – 2019120144400480220512
VolkswagenAmarokCDBA
(2.0L 4cyl)		2012 – 2019132158400480220647Solenoid System
VolkswagenAmarokCDBA
(2.0L 4cyl)		2012 – 2019132158400480220512Piezo System
VolkswagenAmarok V6DDXC
(3.0L 6cyl)		2016 – 2021190228580696220804
