Universal Kits

UNIVERSAL FUEL MANAGER KITS

It’s easy to think that fuel contamination is something that happens “in the bush” but this is simply not true!

Did you know that 72% of all diesel fuel injection system failures are caused by water and fuel lubricity problems?

PROTECTION AGAINST WATER CONTAMINATION

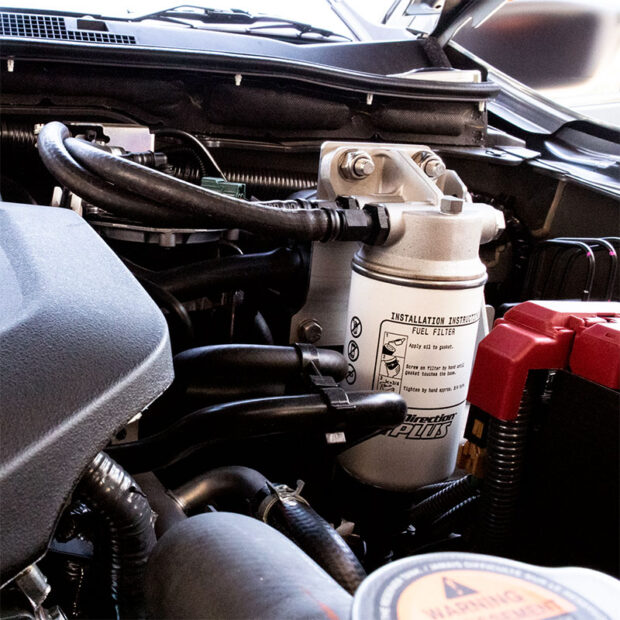

Direction Plus™ Diesel Fuel Manager Pre-Filter Kit protects late model common rail diesel engines against costly injector failure. Installing a Direction Plus™ Pre-Filter kit between the fuel tank and the O.E.M fuel filter will remove the majority of water and particle contamination.This leaves the O.E.M fuel filter to do the final and finer filtration and ensures you are maximising the protection of your diesel fuel system.

Make	Model	Engine	Part No.	Notes	Replacement Element
Generic	With bracket	Various	FM801DPK	10mm hose and fittings.	31863
Generic	With bracket	Various	FM802DPK	12mm hose and fittings.	31863
Generic	With bracket	Various	FM804DPK	8mm hose and fittings.	31863

The Benefits of Installing a Fuel Manager
Pre-Filter Kit for Your Vehicle

Reduce Wear & Tear and Avoid Expensive Repairs

A Fuel Manager Pre-Filter Kit can help you reduce wear and tear on your engine and avoid costly repairs that can exceed $10,000. By removing contaminants from your fuel system, this pre-filter kit ensures that your engine runs smoothly and efficiently.

Clear Water Drainage Bowl for Easy Water Identification

The Fuel Manager Pre-Filter Kit comes with a clear water drainage bowl that allows you to easily identify and remove any water that has been separated from the fuel. This feature ensures that your fuel system remains clean and free of water contamination.

95% Water Separation and Superior Particle Removal

The Fuel Manager Pre-Filter Kit provides 95% water separation and superior particle removal, protecting your engine from harmful contaminants that can cause damage and reduce performance.

Keeps Critical Engine Components Clean

By removing contaminants from your fuel system, the Fuel Manager Pre-Filter Kit keeps critical engine components clean, ensuring that they operate efficiently and last longer.

Ability to Separate Emulsified Water from ULSD

The Fuel Manager Pre-Filter Kit has the ability to separate emulsified water from Ultra-Low Sulfur Diesel (ULSD), ensuring that your engine is protected from water contamination, which can cause rust and corrosion.

No Filter Bypass

The Fuel Manager Pre-Filter Kit is designed to prevent filter bypass, even when the filter is blocked. This ensures that contaminated fuel will not be sent to the fuel system, protecting your engine and fuel system from damage.

UNIVERSAL PRELINE-PLUS KITS

Direction-Plus™ PreLine-Plus is an innovative pre-filter system for diesel fuel systems which ensures a high degree of water separation and particle pre-separation. It is designed specifically to cope with extreme weather conditions and poor fuel quality which makes it the perfect choice for drivers in Australia.

PROTECT YOUR ENGINE AGAINST WATER AND PARTICLE CONTAMINATION

The PreLine-Plus kits include an intuitive multi-stage water alarm that separates it from other kits on the market. With a water separation efficiency of 100% (based on 300um droplet size) and a long service life, meeting the specifications set by leading manufactures of diesel fuel injection systems.

PreLine-Plus system provides protection for all modern diesel high-pressure injection systems, reliably protecting the fuel system from corrosion, abrasion and the frequency of repairs reduced.

Make	Model	Engine	Part No.	Notes	Replacement Element
Universal	With Bracket	Various	PL801DPK	Universal Kit 10mm With Bracket	PLE150DP
Universal	With Bracket	Various	PL802DPK	Universal Kit 12mm With Bracket	PLE150DP

The Benefits of Fitting a
PRELINE-PLUS PRE-FILTER KIT

Remote Multi-Stage Water Alert System

The PreLine-Plus Pre-Filter Kit comes with a remote multi-stage water alert system that provides both visual and audible alerts. This system helps you to monitor the water quality in your system, ensuring that you have access to clean and pure water at all times.

Reliable Protection from Corrosion and Abrasion

By removing contaminants from your water system, the PreLine-Plus Pre-Filter Kit provides reliable protection from corrosion and abrasion. This ensures that your equipment lasts longer and reduces the need for expensive repairs or replacements.

100% Water Separation Efficiency

With a 150μm droplet size, the PreLine-Plus Pre-Filter Kit provides 100% water separation efficiency. This ensures that your water system is protected from water contamination and prevents damage to your equipment.

No Need to Visually Check for Water

The PreLine-Plus Pre-Filter Kit comes with an alarm that alerts you when water is detected in the filter bowl. This eliminates the need for regular visual checks, saving you time and effort.

98% Particle Separation

The PreLine-Plus Pre-Filter Kit provides 98% particle separation based on 30 micron particles. This ensures that your water system is protected from harmful particles, including rust and sediment, which can cause corrosion and abrasion.

Simple Spin-On Style Filter

The PreLine-Plus Pre-Filter Kit is easy to install and maintain, thanks to its simple spin-on style filter. This means that you can replace the filter quickly and easily, ensuring that your water system is always protected.

PRELINE-PLUS MULTI STAGE ALARM
