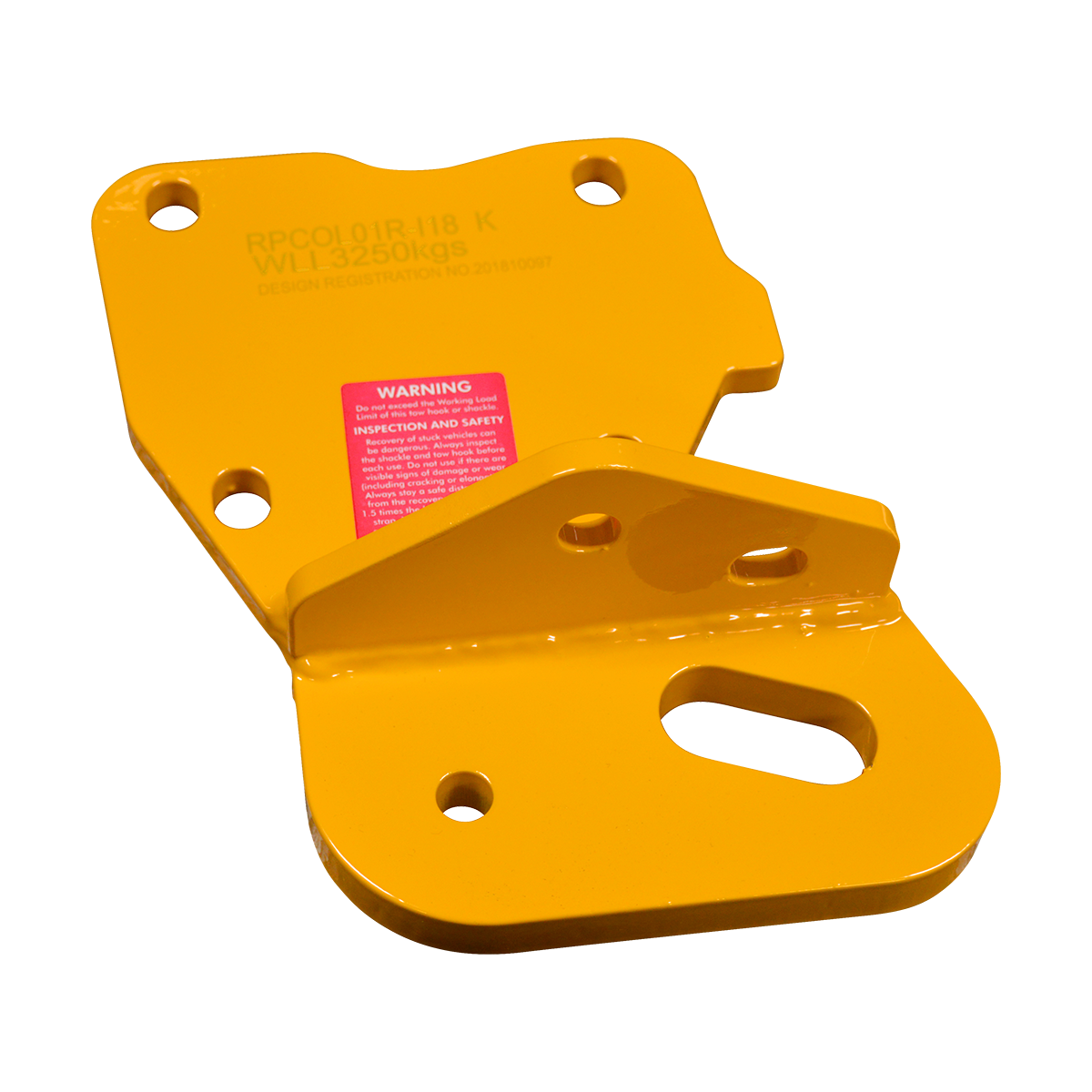

Roadsafe Rated Recovery Tow Points for Holden RC Colorado, Isuzu D-Max & Rodeo (RPCOL01)
Product Overview
The Roadsafe Rated Recovery Tow Points are designed for the Holden RC Colorado (2007 – 2011), Isuzu D-Max (2007 – 2011), and Holden Rodeo (2007 – 2011). These tow points provide a safe and reliable solution for off-road recoveries, offering maximum strength and performance when needed most.
Key Features
-
Vehicle Fitment: Fits Holden RC Colorado (2007 – 2011), Isuzu D-Max (2007 – 2011), and Holden Rodeo (2007 – 2011).
-
Rated and Tested: FEA-tested during design and destruction-tested to establish working load limits.
-
Matched Pair: Supplied as left-hand (LH) and right-hand (RH) for vehicle-specific fitment.
-
Secure Installation: Includes high tensile bolts and vehicle-specific mounting hardware for secure fitment.
-
Fitment Instructions: Clear, detailed instructions provided for proper installation.
Installation Instructions
For best results, follow the vehicle-specific instructions included with your purchase. This ensures the recovery points perform at their maximum working load limit (WLL).
Important: Always use the recovery points as a matched pair with an equalising bridle. Using a single recovery point with a side load or pull may damage the points and void your warranty.
Installation Tips
-
Professional Fitting Recommended: To ensure proper installation, we recommend having the recovery points fitted by a qualified mechanic with 4WD experience. This ensures the points are installed correctly, considering your vehicle’s weight distribution, Bull Bar style, and usage.
-
Chassis Compatibility: These recovery points are designed for vehicles without bull bars. If your vehicle is fitted with a bull bar, modifications may be necessary. This could include adjusting the bull bar bracket or using longer bolts.
Bull Bar Compatibility
If your vehicle has a bull bar, the mounting bolts may interfere with the recovery point fitment. While there is often a fix, some situations may require significant modifications.
We maintain a list of compatible bull bars, available [here]. If additional hardware, like longer bolts, is needed, they can be purchased locally. Due to the variety of bull bar combinations, we cannot include every possible bolt in the kit.
Be sure to use grade 8.8 or higher bolts and tighten them according to the correct torque specifications.
Performance and Use
-
Straight-Line Pulls: These recovery points are designed and tested for straight-line recoveries and are capable of handling the forces involved.
-
Not for Lifting: These recovery points are not intended for lifting purposes. Lifting requires different forces, which could damage the recovery points.
Important Notes
-
Warranty: The warranty covers defects in the recovery points. However, improper installation, misuse, or incorrect selection can void the warranty.
-
Chassis Suitability: Ensure that your vehicle’s chassis is rated to handle recovery forces. While the recovery points are tested for strength, the vehicle owner must confirm that the chassis can safely accommodate them.
