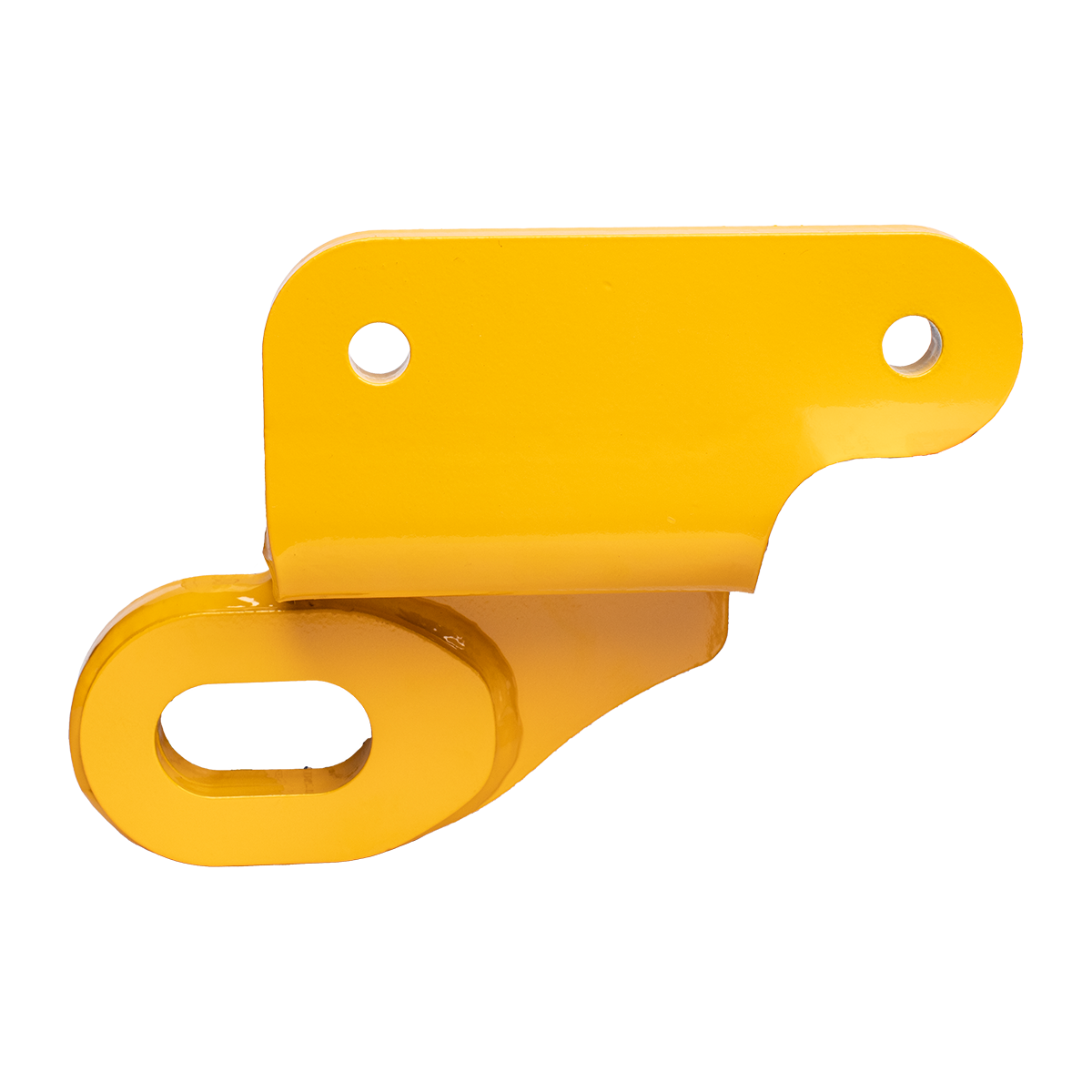

Roadsafe Rated Recovery Tow Points for Mitsubishi Triton ML/MN (RPTRI02)
Product Overview
Designed for the Mitsubishi Triton ML-MN (2005 – 2015), the Roadsafe Rated Recovery Tow Points offer unmatched reliability for off-road recoveries. These tow points undergo rigorous testing, ensuring they meet the highest standards for durability and safety.
Key Features
-
Vehicle Fitment: Fits Mitsubishi Triton ML-MN (2005 – 2015)
-
Rated and Tested: FEA-tested during design and destruction-tested to establish working load limits.
-
Matched Pair: Supplied in left-hand (LH) and right-hand (RH) for an accurate fit.
-
Secure Installation: Includes high tensile bolts and vehicle-specific mounting hardware.
-
Fitment Instructions: Clear, detailed instructions provided for a safe and easy installation.
Installation Instructions
For safe and efficient installation, follow the vehicle-specific instructions included with your purchase. This ensures the recovery points perform at their maximum working load limit (WLL).
Important: Always install as a matched pair with an equalising bridle. Using a single point with a side load or pull can damage the recovery points, potentially voiding your warranty.
Installation Tips
-
Professional Fitting: We recommend fitting the recovery points with the help of a qualified mechanic experienced in 4WD vehicles. This ensures the installation is done correctly, accounting for your vehicle’s weight distribution, Bull Bar style, and general usage.
-
Chassis Compatibility: These recovery points are designed for vehicles without bull bars. If your vehicle has a bull bar, modifications may be needed. This may include adjusting the bull bar bracket or adding hardware, such as longer bolts.
Bull Bar Compatibility
If your Triton ML-MN has a bull bar, the mounting bolts may conflict with the required holes for the recovery points. While most issues can be resolved, in some cases, major modifications to the bull bar or vehicle may be necessary.
We maintain a list of compatible bull bars, available [here]. If additional hardware, like longer bolts, is required, you can purchase them locally. Due to the variety of bull bar combinations, we cannot include every possible bolt in the kit.
Always use grade 8.8 or higher bolts and follow the correct torque specifications.
Performance and Use
-
Straight-Line Pulls: These recovery points are designed for straight-line recoveries and, in some cases, a 30-degree off-centerline pull.
-
Not for Lifting: These recovery points are not tested for lifting. Lifting involves different forces that could damage the recovery points.
Important Notes
-
Warranty: The warranty covers defects in the recovery points. However, improper installation, misuse, or incorrect selection can void the warranty.
-
Chassis Suitability: Ensure that your vehicle’s chassis is rated to handle recovery forces. The recovery points are tested for strength, but it is your responsibility to confirm that your vehicle’s chassis can accommodate them safely.
