\ Shop \ Roadsafe Rated Recovery Tow Points PJ-PK RANGER / BT-50 (RPRAN01)

Roadsafe Rated Recovery Tow Points PJ-PK RANGER / BT-50 (RPRAN01)

Code: RPRAN01

Roadsafe Rated Recovery Tow Points for Ford Ranger & Mazda BT-50 (RPRAN01)

Product Overview

The Roadsafe Rated Recovery Tow Points are designed for the Ford Ranger (2007 – 2011) and Mazda BT-50 (2007 – 2011). These recovery points have been rigorously tested to provide superior strength and reliability for off-road recoveries. Ensure your vehicle is prepared for anything with these high-performance tow points.

Key Features

  • Vehicle Fitment: Fits Ford Ranger (2007 – 2011) and Mazda BT-50 (2007 – 2011).

  • Rated and Tested: FEA-tested during design and destruction-tested to determine working load limits.

  • Matched Pair: Supplied as left-hand (LH) and right-hand (RH) for precise vehicle-specific fitment.

  • Secure Installation: Includes high tensile bolts and vehicle-specific mounting hardware.

  • Fitment Instructions: Easy-to-follow instructions provided to ensure correct installation.

Installation Instructions

Follow the provided vehicle-specific instructions to ensure the recovery points are installed correctly, allowing them to perform at their maximum working load limit (WLL).

Important: Always use the recovery points as a matched pair with an equalising bridle. Using a single recovery point with a side load or pull may damage the points and void your warranty.

Installation Tips

  • Professional Fitting Recommended: For optimal results, we recommend fitting the recovery points with the help of a qualified mechanic who has expertise in 4WD vehicles. This ensures proper installation based on your vehicle’s weight distribution, Bull Bar style, and usage.

  • Chassis Compatibility: These recovery points are designed for vehicles without bull bars. If your vehicle has a bull bar, modifications may be needed, such as adjusting the bull bar bracket or using longer bolts.

Bull Bar Compatibility

For vehicles with bull bars, the mounting bolts may interfere with the required chassis holes for the recovery points. While most issues can be resolved, some situations may require significant modifications.

We maintain a list of compatible bull bars, available [here]. If additional hardware, like longer bolts, is needed, they can be purchased locally. Due to the variety of bull bar combinations, we cannot include every possible bolt in the kit.

Ensure that grade 8.8 or higher bolts are used and tightened to the correct torque specifications.

Performance and Use

  • Straight-Line Pulls: These recovery points are designed for straight-line recoveries and are tested to handle the forces involved.

  • Not for Lifting: These recovery points are not intended for lifting purposes. Lifting requires different forces that could compromise the integrity of the recovery points.

Important Notes

  • Warranty: The warranty covers defects in the recovery points. However, improper installation, misuse, or incorrect selection can void the warranty.

  • Chassis Suitability: The chassis must be designed to handle the recovery forces. The recovery points themselves are tested for strength, but it is the vehicle owner’s responsibility to ensure the chassis can accommodate them safely.



https://roadsafe.com.au/products/rated-recovery-tow-point-ford-compatible/rpran01

$385.00

In Stock

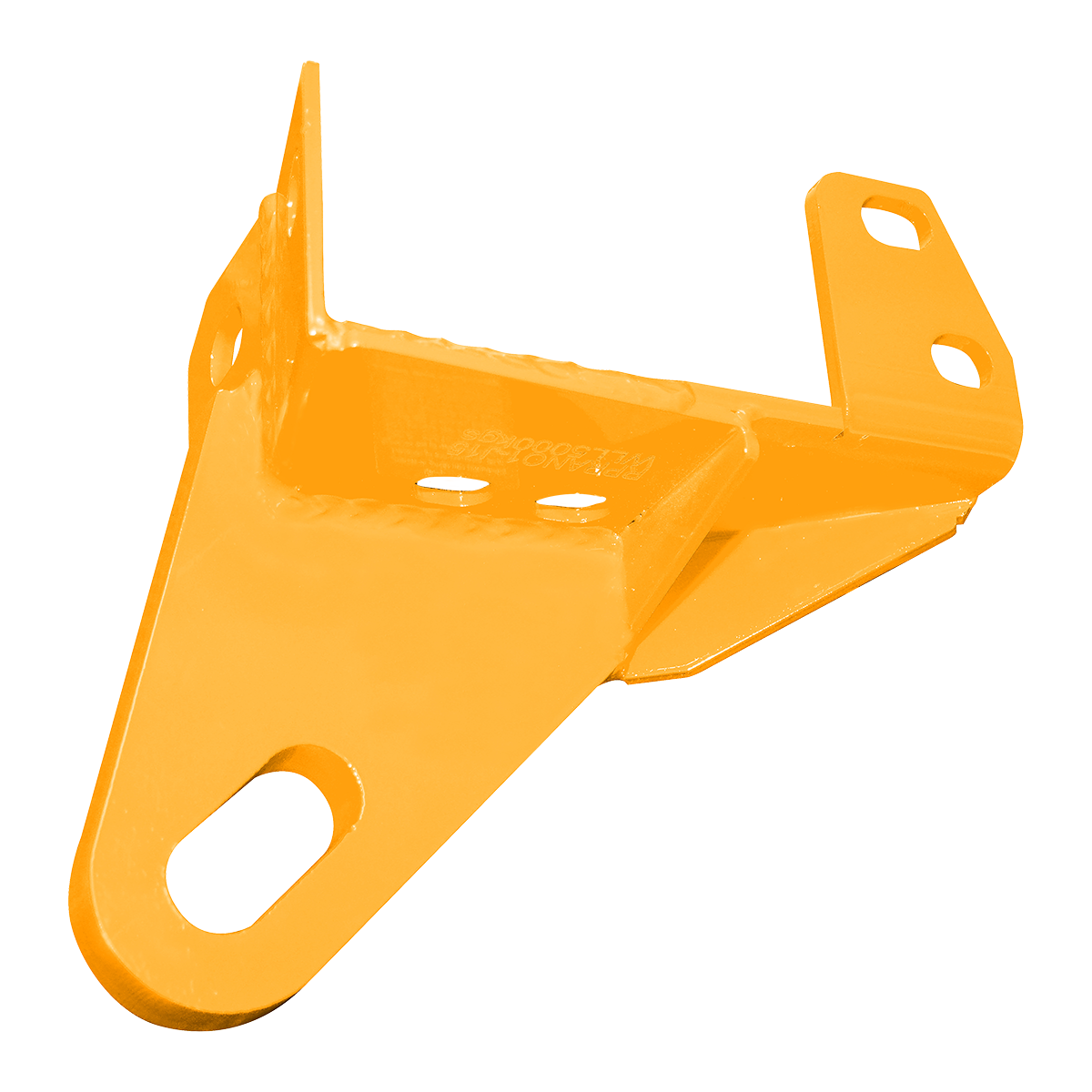

Roadsafe Rated Recovery Individual Tow Point for ford Ranger and Mazda BT-50 product image
This item: Roadsafe Rated Recovery Tow Points PJ-PK RANGER / BT-50 (RPRAN01)
$385.00
$385.00

BUNDLE & SAVE

Roadsafe Soft Shackle 10mm 9000kg with Bonus Drying Bag product image
1 × Roadsafe Soft Shackle 10mm 9000kg with Bonus Drying Bag (SB039)
Original price was: $39.00.Current price is: $35.10.
TR+ throttle control front
1 × TR+ Throttle Controller for RANGER (TR0833DP)
Original price was: $215.00.Current price is: $193.50.
Placeholder
1 × Direction-Plus Off-Road Tyre Deflators (DPD4PK)
Original price was: $79.99.Current price is: $71.99.

Interest free for up to 6 months with zip logoLEARN MORE

Total: $385.00

Roadsafe Rated Recovery Tow Points for Ford Ranger & Mazda BT-50 (RPRAN01)

Product Overview

The Roadsafe Rated Recovery Tow Points are designed for the Ford Ranger (2007 – 2011) and Mazda BT-50 (2007 – 2011). These recovery points have been rigorously tested to provide superior strength and reliability for off-road recoveries. Ensure your vehicle is prepared for anything with these high-performance tow points.

Key Features

  • Vehicle Fitment: Fits Ford Ranger (2007 – 2011) and Mazda BT-50 (2007 – 2011).

  • Rated and Tested: FEA-tested during design and destruction-tested to determine working load limits.

  • Matched Pair: Supplied as left-hand (LH) and right-hand (RH) for precise vehicle-specific fitment.

  • Secure Installation: Includes high tensile bolts and vehicle-specific mounting hardware.

  • Fitment Instructions: Easy-to-follow instructions provided to ensure correct installation.

Installation Instructions

Follow the provided vehicle-specific instructions to ensure the recovery points are installed correctly, allowing them to perform at their maximum working load limit (WLL).

Important: Always use the recovery points as a matched pair with an equalising bridle. Using a single recovery point with a side load or pull may damage the points and void your warranty.

Installation Tips

  • Professional Fitting Recommended: For optimal results, we recommend fitting the recovery points with the help of a qualified mechanic who has expertise in 4WD vehicles. This ensures proper installation based on your vehicle’s weight distribution, Bull Bar style, and usage.

  • Chassis Compatibility: These recovery points are designed for vehicles without bull bars. If your vehicle has a bull bar, modifications may be needed, such as adjusting the bull bar bracket or using longer bolts.

Bull Bar Compatibility

For vehicles with bull bars, the mounting bolts may interfere with the required chassis holes for the recovery points. While most issues can be resolved, some situations may require significant modifications.

We maintain a list of compatible bull bars, available [here]. If additional hardware, like longer bolts, is needed, they can be purchased locally. Due to the variety of bull bar combinations, we cannot include every possible bolt in the kit.

Ensure that grade 8.8 or higher bolts are used and tightened to the correct torque specifications.

Performance and Use

  • Straight-Line Pulls: These recovery points are designed for straight-line recoveries and are tested to handle the forces involved.

  • Not for Lifting: These recovery points are not intended for lifting purposes. Lifting requires different forces that could compromise the integrity of the recovery points.

Important Notes

  • Warranty: The warranty covers defects in the recovery points. However, improper installation, misuse, or incorrect selection can void the warranty.

  • Chassis Suitability: The chassis must be designed to handle the recovery forces. The recovery points themselves are tested for strength, but it is the vehicle owner’s responsibility to ensure the chassis can accommodate them safely.



https://roadsafe.com.au/products/rated-recovery-tow-point-ford-compatible/rpran01

https://roadsafe.com.au/api/v1/file/file/1183

Additional information

Weight 15 kg
Brand

Roadsafe
Make Model Year Engine
Make Model Year Engine
Ford Ranger 2007 - 2009 WLAT (2.5L 4cyl)
Ford Ranger 2007 - 2011 WEAT (3.0L 4cyl)
Ford Ranger 2011 WLAT (2.5L 4cyl)
Mazda BT-50 2007 - 2011 WEAT (3.0L 4cyl)
Mazda BT-50 2007 - 2011 WLAT (2.5L 4cyl)

Related products

  • Placeholder
    Lighting Gear

    Direction-Plus Rock Lights Kit (RK0001DPK)

    The Direction Plus™ Rocklights are an essential accessory that you’d want to go off-road at night and to have a great experience while you’re at it.

    Our Rocklights are perfect for this application and can be used both for front and rear lighting to help you figure out the ideal wheel positioning in difficult terrain and ensure you see exactly what you’re going over.

    Built to face extreme conditions and with versatility in mind, Direction-Plus™ Rocklights will surely be up for the task.

    features:

      • 6 High brightness LED modules
      • Switch control, protect your battery
      • Waterproof control box and connectors
      • Simple plug and play wiring
      • Ideal for camping and night driving
      • Bluetooth connection, wireless control with smartphones
      • Select any colour you want
      • Control brightness
      • Controlled via an app on your phone
      • Choose your favourite music to play with your Rocklights



    (0 reviews)
    $199.00 Add to cart

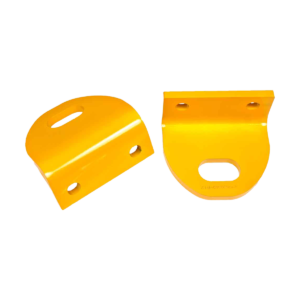

  • Roadsafe Rated Recovery Individual Tow Point for Nissan Navara D40 product image
